0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Brand Name : R

Model Number : SMD0805R010SF

Certification : UL,ROHS,REACH

Place of Origin : CHINA

MOQ : 5000PCS

Price : Negotiable

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 5000,000,000PCS PER MONTH

Delivery Time : 10 Days

Packaging Details : Tape in reel,5000pcs per reel

Name : PPTC Resettable Fuses

Termination Style : SMD/SMT

Hold Current : 100 mA

Trip Current : 300 mA

Maximum Voltage : 15V

Current Rating - Max : 30A

Package / Case : 0805 (2012 metric)

Type : PolyFuse Resettable PTC

Contact Now

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Description

The 0805 Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

Features

RoHS compliant, lead-free and halogen-free

Fast response to fault currents

Compact design saves board space

Low resistance

Low-profile

Compatible with high temperature solders

Applications

• USB peripherals

• Disk drives

• CD-ROMs

• Plug and play protection for motherboards and peripherals

• Mobile phones - battery and port protection

• Disk drives

• PDAs / digital cameras

• Game console port protection

Electrical Characteristics

Model	Marking						Maximum		Resistance		App.
		V max	Imax	I hold	I trip	Pd	Time To Trip		Resistance		App.
				@25°C	@25°C	Typ.	Current	Time	R i min	R1max	UL
		(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(W)	(W)	UL
SMD0805R005SF	1	15.0	30	0.05	0.15	0.5	0.5	1.50	1.500	18.000	√
SMD0805R010SF	1	15.0	30	0.10	0.30	0.5	0.5	1.50	0.750	6.000	√
SMD0805R020SF	2	9.0	30	0.20	0.50	0.5	8.0	0.02	0.550	3.500	√
SMD0805R035SF	3	6.0	30	0.35	0.75	0.5	8.0	0.10	0.200	1.200	√
SMD0805R035SF12v	3	12.0	30	0.35	0.75	0.5	8.0	0.10	0.200	1.200
SMD0805R050SF	5	6.0	30	0.50	1.00	0.5	8.0	0.10	0.100	0.850	√
SMD0805R050SF12v	5	12.0	30	0.50	1.00	0.5	8.0	0.10	0.100	0.850
SMD0805R050SF16v	5	16.0	30	0.50	1.00	0.5	8.0	0.10	0.100	0.850
SMD0805R050SF24v	5	24.0	30	0.50	1.00	0.5	8.0	0.10	0.100	0.850
SMD0805R075SF	7	6.0	35	0.75	1.50	0.6	8.0	0.20	0.070	0.385	√
SMD0805R075SF12v	7	12.0	35	0.75	1.50	0.6	8.0	0.20	0.070	0.385
SMD0805R100SF	0	6.0	35	1.00	1.95	0.6	8.0	0.30	0.040	0.230	√
SMD0805R100SF12v	0	12.0	35	1.00	1.95	0.6	8.0	0.30	0.040	0.230
SMD0805R110SF	0	6.0	35	1.10	2.20	0.6	8.0	0.30	0.035	0.210	√
SMD0805R110SF12v	0	12.0	35	1.10	2.20	0.6	8.0	0.30	0.035	0.210
SMD0805R125SF	12	6.0	35	1.25	2.50	1.5	8.0	0.60	0.025	0.140	√
SMD0805R150SF	15	6.0	35	1.50	3.00	1.0	8.0	0.50	0.015	0.130	√

Temperature Rerating

Model	Ambient Operation Temperature
Model	-40°C	-20°C	0°C	25°C	40°C	50°C	60°C	70°C	85°C
SMD0805R005SF	0.070	0.060	0.055	0.050	0.040	0.035	0.030	0.025	0.015
SMD0805R010SF	0.14	0.12	0.11	0.10	0.08	0.07	0.06	0.05	0.03
SMD0805R020SF	0.28	0.25	0.23	0.20	0.17	0.14	0.12	0.10	0.07
SMD0805R035SF	0.47	0.44	0.39	0.35	0.30	0.27	0.24	0.20	0.14
SMD0805R050SF	0.68	0.62	0.55	0.50	0.40	0.37	0.33	0.29	0.23
SMD0805R075SF	1.00	0.90	0.79	0.75	0.63	0.57	0.53	0.41	0.34
SMD0805R100SF	1.35	1.25	1.15	1.00	0.82	0.74	0.65	0.55	0.42
SMD0805R110SF	1.45	1.35	1.20	1.10	0.92	0.84	0.75	0.65	0.52
SMD0805R125SF	1.65	1.53	1.36	1.25	1.05	0.95	0.85	0.74	0.59
SMD0805R150SF	1.98	1.84	1.63	1.50	1.26	1.14	1.02	0.88	0.71

Thermal Derating Curve

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Average Time-Current Curve

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Size (mm)

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

P/N	A		B		C		D	E
P/N	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Min.
SMD0805R005SF	2.00	2.20	1.20	1.50	0.40	0.90	0.20	0.10
SMD0805R010SF	2.00	2.20	1.20	1.50	0.40	0.90	0.20	0.10
SMD0805R020SF	2.00	2.20	1.20	1.50	0.35	0.80	0.20	0.10
SMD0805R035SF	2.00	2.20	1.20	1.50	0.35	0.80	0.20	0.10
SMD0805R035SF12v	2.00	2.20	1.20	1.50	0.35	0.80	0.20	0.10
SMD0805R050SF	2.00	2.20	1.20	1.50	0.35	0.80	0.20	0.10
SMD0805R050SF12v	2.00	2.20	1.20	1.50	0.35	0.80	0.20	0.10
SMD0805R050SF16v	2.00	2.20	1.20	1.50	0.50	1.10	0.20	0.10
SMD0805R050SF24v	2.00	2.20	1.20	1.50	0.50	1.10	0.20	0.10
SMD0805R075SF	2.00	2.20	1.20	1.50	0.50	1.00	0.20	0.10
SMD0805R075SF12v	2.00	2.20	1.20	1.50	0.50	1.00	0.20	0.10
SMD0805R100SF	2.00	2.20	1.20	1.50	0.70	1.20	0.20	0.10
SMD0805R100SF12v	2.00	2.20	1.20	1.50	0.70	1.20	0.20	0.10
SMD0805R110SF	2.00	2.20	1.20	1.50	0.70	1.20	0.20	0.10
SMD0805R110SF12v	2.00	2.20	1.20	1.50	0.70	1.20	0.20	0.10
SMD0805R125SF	2.00	2.20	1.20	1.50	1.00	1.50	0.20	0.10
SMD0805R150SF	2.00	2.20	1.20	1.50	1.00	1.50	0.20	0.10

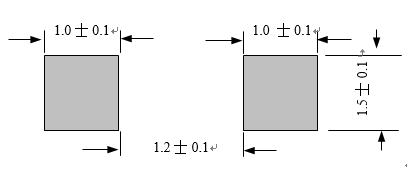

Recommended Pad Layout (mm.)

0805L010YR Cross 0805 2012 Metric PPTC Resettable Fuses 0.1A 15V Tape in Reel

Packaging Info

Part Number	Quantity
SMD0805R005.010.020.035.050.SF	5,000 pcs/reel
SMD0805R075.100.110.125.SF	4,000 pcs/reel
SMD0805R150SF	3,500 pcs/reel

Tape & reel packaging per EIA481-1
