Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats

Name: Zinc Alloy Automotive Micro Fuses Plug In Car Fuse Replacement For Motor Boats
Brand: Uchi
Price: 1 USD

Buy cheap Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats product

Brand Name : Uchi

Model Number : Atn1101

Certification : UL ROH

Place of Origin : dongguan

MOQ : 10000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000000month

Packaging Details : bulk

Volt : DC58V

Ampere rating : 1

color : deep green transparent

housing : heat-resting and fire-resistingtranspant resin

fuse-element and terminal : zinc alloy

aing temperature range : -40+_85degree

Contact Now

plug-in fuse for in motor or boats and trailers with wage SAE J2077 special purpose fuse

1.Scope

The fuses shown are for in motor vehicles,boats and trailers to protect ect electricai wiring and equipment.This standard is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements.

2.Definition

A fuse is a device designed to interrupt the electrical circuit when subjected to overcents.This action is to be nonreversible and the fuse is intended to be replaced after the circuit,malfunction has been corrected.

3. Application file

Complies with: The standard wage SAE J2077Special Purpose Fuse

4. aing Temperature Range

-40℃to+85℃

5.Ampere

RATING AND FUSE COLOR CODE-TABLE 1

Material	Ampere	Color	Volt
number	rating


ATN11001	1	Deep green transparent

ATN 11002	2	It Grey (Gray)

ATN 11003	3	Violet

ATN 11004	4	Pink

ATN 11005	5	Tan

ATN 1107.5	7.5	Brown
			DC58V
ATN 11010	10	Red	DC58V

ATN 11015	15	Blue

ATN 11020	20	Yellow

ATN 11025	25	Clear

ATN 11030	30	Green

ATN11035	35	Purple

ATN11040	40	Purple

6.Size-TABLE2

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats

7.Material

Materials of the fuse are in accordance with TABLE 3

Division	Material


Housing	Heat-resting and fire-resistingtranspant resin


Fuse-element and terminal	Zinc alloy

8.performance

performance of use is in accordance with TABLE 4


tesl turrent	Rated current		Operating	Time
	A	MIN		MAX
100%	40	360,000s/-		No requirement
110%	1-35	360,000s/-		No requirement
135%	2-40	0.75s		1800s
200%	1-40	0.15s		5s
350%	1-40	0.04s		0.5s
600%	1-40	0.02s		0.1s

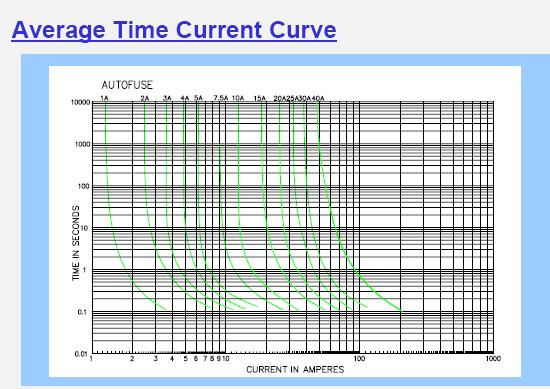

9.AB11 Diagram

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats

Product Tags:

mini blade car fuses

auto mini fuses

Zinc Alloy Automotive Micro Fuses Plug - In Car Fuse Replacement For Motor / Boats Images
