10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C

  • 1
  • 2
  • 3

Brand Name : UCHI

Model Number : EK2-EK16,FK2-FK16,LK5-LK21,

Certification : CCC,ROHS,REACH

Place of Origin : Dongguan,Guangdong,China

MOQ : 5000PCS

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union,Money gram

Supply Ability : 5000,000,000PCS Per Month

Delivery Time : 7 days

Packaging Details : Bulk

Holding Temp. (Th) : current for 168 h.

Key Features : Ceramic Case,Make a Mounting Hole,Lead Wire is Flame Retardant Insulated,Non-resettable,High Accuracy of Function Temp. ,RoHS & REACH Compliant

Applications : Electric Heating Apparatus,Home Electrical Appliances

Customization : Other Temp.Can be Customized ，Lead Wires CanbeInsulated，Tinned Copper Wires or CP Wires

Packaging Information : Q’TY: 3 kPCS/Carton Carton Size: 330 × 300 × 220 (mm)

Processing customization : Customizable

Contact Now

Home Electrical Appliances Transformers Tf 102°C Fusing Temp. 10A ,16A,20A,Alloy Thermal-link Thermal Cutoff (TCO)



Alloy Thermal-link / Thermal Cutoff (TCO) is defined as a non-resettable protective device functioning one time only. It is wide-
ly used in electrical equipment. Alloy TCO is mainly consist of fusible alloy, flux, plastic or ceramic case, sealant epoxy and
lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the
fusing temp. of alloy TCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux and dis-
connects the circuit completely. Rated Current 1 A to 200 A, Rated Functioning Temp. 76 °Cto 230 °C, with CCC, Approvals and RoHS, REACH compliant.

10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C

10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102CEK Series Ir : 10 A

Dimensions (mm)



L L1 L2 L3 W T d 1 2
21±1 13.5±1.0 78±2 5.0±1.0 12±1 5.5±0.5 Φ5.5±1.0 Φ1.3±0. 1 Φ1.05±0.1

 Specifications



Model

Tf

 Fusing Temp.

Th



Tm



Ir



Ur

 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C
(°C) (°C) (°C) (°C) (A) (V) CCC
EK2 102 99±2 72 200 10 AC 250



●



●
EK3 115 112±2 85 200 10 AC 250



●



●



EK4



125



121±2



95



200



10



AC 250





●



EK5



130



125±2



100



200



10



AC 250



●



●
EK6 133 130±2 107 200 10 AC 250   ●
EK7 135 130±2 108 200 10 AC 250



●
EK8 136 131±2 108 200 10 AC 250   ●
EK9 145 140±2 115 200 10 AC 250   ●



EK10



150



145±2



120



200



10



AC 250



●



●



EK11



160



156±2



133



200



10



AC 250



●



●



EK12



200



197±2



160



380



10



AC 250



●



●



EK13



221



218±2



186



380



10



AC 250



●



●



EK16



230



225±3



190



380



10



AC 250



●



●



10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C







FK Series Ir : 16 A  Dimensions (mm)



L L1 L2 L3 W T d 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C1 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C2
21±1 13.5±1.0 78±2 5.0±1.0 12±1 5.5±0.5 Φ5.5±1.0 Φ1.6±0. 1 Φ1.3±0. 1

Specifications



Model Tf

Fusing

Temp.

 Th Tm Ir Ur 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C
(°C) (°C) (°C) (°C) (A) (V) CCC
FK2 102 99±2 72 200 16 AC 250



●



●
FK3 115 112±2 85 200 16 AC 250



●



●



FK4



125



121±2



95



200



16



AC 250





●



FK5



130



125±2



100



200



16



AC 250



●



●
FK6 133 130±2 107 200 16 AC 250   ●
FK7 135 130±2 108 200 16 AC 250



●
FK8 136 131±2 108 200 16 AC 250   ●
FK9 145 140±2 115 200 16 AC 250   ●



FK10



150



145±2



120



200



16



AC 250



●



●



FK11



160



156±2



133



200



16



AC 250



●



●



FK12



200



197±2



160



380



16



AC 250



●



●



FK13



221



218±2



186



380



16



AC 250



●



●



FK16



230



225±3



190



380



16



AC 250



●



●



10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C

10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C

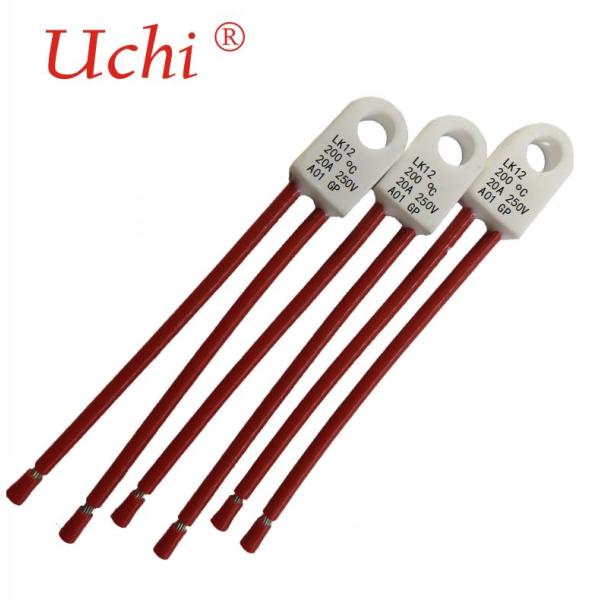

LK Series Ir : 20 A



 Dimensions (mm)



L L1 L2 L3 W T d 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C1 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C2
21±1 13.5±1.0 78±2 5.0±1.0 12±1 5.5±0.5 Φ5.5±1.0 Φ1.6±0. 1 Φ1.3±0. 1



 Specifications
Model Tf

Fusing

Temp.

 Th Tm Ir Ur 10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C
(°C) (°C) (°C) (°C) (A) (V)
LK5 130 125±2 100 200 20 AC 250 ●
LK6 133 130±2 107 200 20 AC 250 ●
LK7 135 130±2 108 200 20 AC 250 ●
LK8 136 131±2 108 200 20 AC 250 ●
LK9 145 140±2 115 200 20 AC 250 ●
LK10 150 145±2 120 200 20 AC 250 ●
LK11 160 156±2 133 200 20 AC 250 ●
LK12 200 197±2 160 380 20



AC 250



●
LK13 221 218±2 186 380 20 AC 250 ●
LK16 230 225±3 190 380 20 AC 250 ●
LK17 240 235±3 210 380 20 AC250 ●
LK18 184 181±3 145 380 20 AC250 ●
LK19 192 187±3 150 380 20 AC250 ●
LK20 205 200±3 160 380 20 AC250 ●
LK21 216 210±3 175 380 20 AC250 ●

10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C10A 16A 20A Alloy Thermal Link Home Electrical Appliances Transformers Tf 102C
