Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C

Brand Name : UCHI

Model Number : EY2-EY15,FY2-FY15

Certification : CCC,ROHS,REACH

Place of Origin : Dongguan,Guangdong,China

MOQ : 5000PCS

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union,Money gram

Supply Ability : 5000,000,000PCS Per Month

Delivery Time : 7 days

Packaging Details : Bulk

Key Features : Ceramic Case,Make a Mounting Hole,Lead Wire is Flame Retardant Insulated,Non-resettable,High Accuracy of Function Temp. ,RoHS & REACH Compliant

Applications : Electric Heating Apparatus,Home Electrical Appliances

Customization : Other Temp.Can be Customized ,Lead Wires CanbeInsulated,Tinned Copper Wires or CP Wires

Packaging Information : Q’TY: 3 kPCS/Carton Carton Size: 330 × 300 × 220 (mm)

Rated Current : 1 A to 200 A

Rated Functioning Temp : 76 °Cto 230 °C

Contact Now

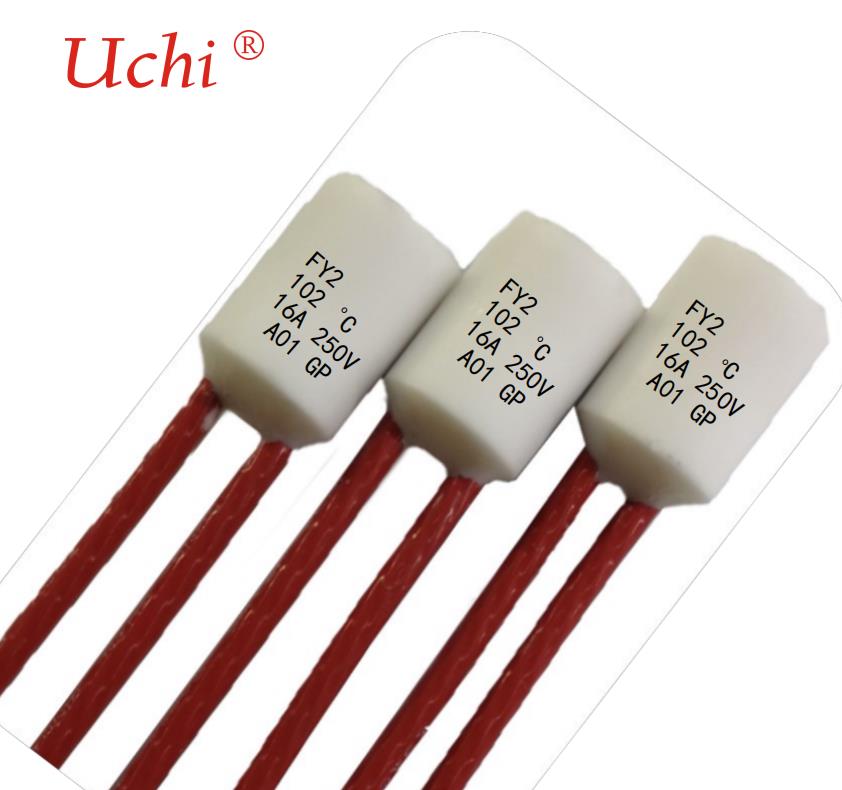

Home Electrical Appliances Transformers Tf 102°C Fusing Temp. 10A ,16A,,Alloy Thermal-link Thermal Cutoff (TCO)



Alloy Thermal-link / Thermal Cutoff (TCO) is defined as a non-resettable protective device functioning one time only. It is wide-
ly used in electrical equipment. Alloy TCO is mainly consist of fusible alloy, flux, plastic or ceramic case, sealant epoxy and
lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the
fusing temp. of alloy TCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux and dis-
connects the circuit completely. Rated Current 1 A to 200 A, Rated Functioning Temp. 76 °Cto 230 °C, with CCC, Approvals and RoHS, REACH compliant.

Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102CHome Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C



EY Series Ir : 10 A

 Dimensions (mm)



L L1 L2 D Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C1 Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C2
13±1 70±3 5.0±1.0 Φ9±1 Φ1.6±0.1 Φ1.3±0.1

Specifications



Model Tf

Fusing

Temp.

Th Tm Ir Ur Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C
(°C) (°C) (°C) (°C) (A) (V) CCC
EY2 102 99±2 72 200 10 AC 250





EY3 115 112±2 85 200 10 AC 250



EY4



125



121±2



95



200



10



AC 250





EY5 130 125±2 100 200 10



AC 250





EY6 133 130±2 107 200 10 AC 250
EY7 135 130±2 108 200 10 AC 250



EY8 136 131±2 108 200 10 AC 250
EY9 145 140±2 115 200 10 AC 250
EY10 150 145±2 120 200 10



AC 250







EY11



160



156±2



133



200



10



AC 250







EY12



200



197±2



160



250



10



AC 250







EY18



120



115±2



90



250



10



AC 250





EY15 95 91 ±2 60 200 10



AC 250







Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102CHome Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C





FY Series Ir : 16 A

 Dimensions (mm)



L L1 L2 D Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C1 Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C2
13±1 70±3 5.0±1.0 Φ9±1 Φ1.6±0.1 Φ1.3±0.1

Specifications



Model Tf

Fusing

Temp.

Th Tm Ir Ur Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C
(°C) (°C) (°C) (°C) (A) (V) CCC
FY2 102 99±2 72 200 16 AC 250





FY3 115 112±2 85 200 16 AC 250



FY4



125



121±2



95



200



16



AC 250





FY5 130 125±2 100 200 16



AC 250





FY6 133 130±2 107 200 16 AC 250
FY7 135 130±2 108 200 16 AC 250



FY8 136 131±2 108 200 16 AC 250
FY9 145 140±2 115 200 16 AC 250
FY10 150 145±2 120 200 16



AC 250







FY11



160



156±2



133



200



16



AC 250







FY12



200



197±2



160



250



16



AC 250







FY18



120



115±2



90



250



16



AC 250





FY15 95 91±2 60 200 16



AC 250







Home Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102CHome Electrical Appliances Transformers 10A 16A Alloy Thermal Link Tf 102C
